我公司進出口業務
經營范圍:汽車銷售及售后服務有關的市場營銷及咨詢服務,礦用自卸車及配件、小型汽車配件、工程機械、潤滑油、輪胎銷售,舊機動車交易業務。進出口貿易、從事貨物與技術的進出口業務,進出口汽車、配件、機電產品、化工、五金、煤炭、建材、日用百貨、服裝、地毯、食品、酒類及農產品等。
部分產品:
1.礦用自卸車

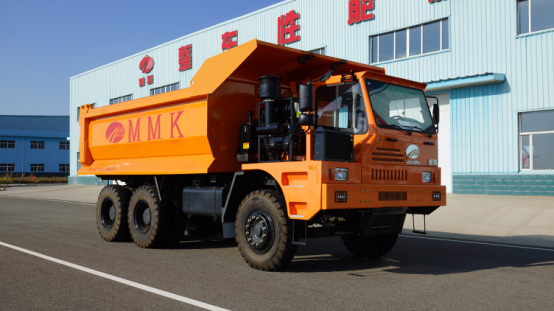

1.1蒙凱快馬礦用車
快馬礦用車以公司MK70平臺打造,國內市場首創(chuàng ),填補該類礦用車產品市場的空白。采用行業內得到廣泛認可的玉柴發動機、法士特變速箱、車橋承載系統及舒適豪華的駕駛室??捎糜谝苯鸬V山、露天煤礦與鐵礦、水利水電工地、有色金屬礦山、建筑工地等場所的物料運輸設備。
采用卷繞電池,無需加注電解液。該電池壽命是普通電池的2-3倍,長達2年的質保壽命保證您放心使用。
440馬力發動機,合理的動力匹配,使該車擁有65km/h的車速,滿足在同一場地不同車型混用時,速度效率的優化匹配。裝載50T土方在8%的坡道上能達到15km/h,
U型斗結構,大大減輕整車整備質量,提高載重效率、增加運營效益。
駕駛室采用氣囊減震器,比彈簧減震效果更好,使駕駛更舒適。
MK Fleeting Mining Truck from mining truck MK70 (of ZSVM) as a platform, being the domestic pioneer to fill the niche of the same type of coal dumpers. It adopts YUCHAI engine, which is widely recognized within the domestic market; FASTRE gearbox, axle load system and comfortable/luxurious driver’s cab. It can be used to transport materials for metallurgic mines, open-air coal mines and iron ore mines, water conservancy/hydropower construction sites, non-ferrous metal mines, and construction sites.
Spiral-wound battery loaded on this mining truck requires no supplement of electrolyte. This battery is able to survive one or two times longer than ordinary batteries and the two-year warranty assures your proper use during this period.
Driven by a 440 HP engine, and matched with appropriate powertrain, this truck is able to go at a speed of 65km/h. Also, this truck is easy to coordinate with other vehicles on the same ground to maximize efficiency. Loading 50T earthworks, it is able to climb 8% ramp at 15km/h.
The U-type bucket which greatly reduces the curb weight can improve load efficiency and increase benefits.
The diver’s cabin is equipped with air bag shock absorbers which are more effective than spring shock absorbers, so as to provide a more comfortable drive.
蒙凱快馬礦用車參數Specification
車輛型號 Model | MK60快馬 |
驅動形式 Driving Model | 6×4 |
軸 距 Wheel Base(mm) | 3625+1550 |
發動機型號 Engine | YC6MJ440L-T20 |
變速器 Gearbox | 10JSD220A |
車 橋 Axle | Front 13T Rear 25T |
輪胎規格 Tyre Size | 13.00 |
整車整備質量 Kerb Weight(kg) | 23000 |
允許最大總質量Payload Capacity(kg) | 60000 |
車廂內部尺寸Inside Body Size(mm) | 5600×3000×1500 |
整車外形尺寸 Vehicle Shape Size(mm) | 8350×3235×3830 |
最高車速 Max.Speed(km/h) | 65 |
最大爬坡度 Grade Ability(%) | 45 |
最小轉彎半徑 Min.Turning Radius(m) | 11 |
車廂舉升系統 Lifting System | MK Lifting System |

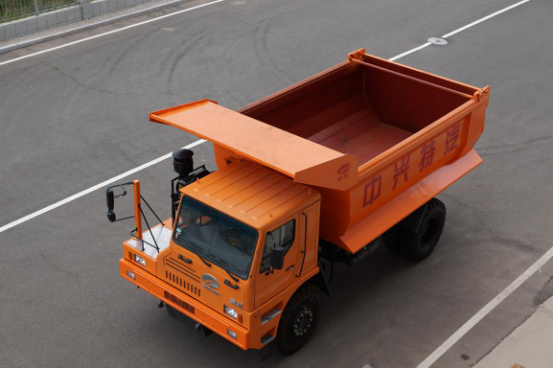

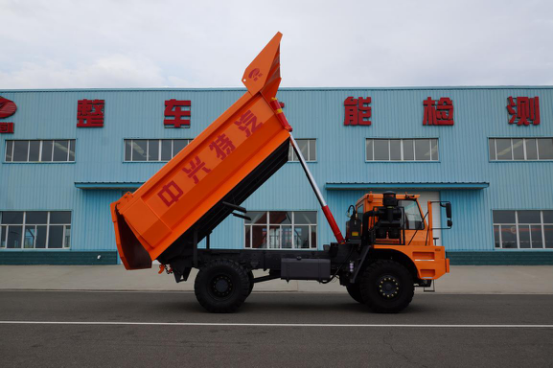

1.2蒙凱兩軸礦用車MK50
MK50兩軸礦用車以公司MK70平臺打造,國內市場首創(chuàng ),填補該類礦用車產品市場的空白。采用行業內得到廣泛認可的玉柴發動機、法士特變速箱、車橋承載系統及舒適豪華的駕駛室??捎糜谝苯鸬V山、露天煤礦與鐵礦、水利水電工地、有色金屬礦山、建筑工地等場所的物料運輸設備。
Biaxal mining truck MK50 derives from mining truck MK70 (of ZSVM) as a platform, being the domestic pioneer to fill the niche of the same type of coal dumpers. It adopts YUCHAI engine, which is widely recognized within the domestic market; FASTRE gearbox, axle load system and comfortable/luxurious driver’s cab. It can be used to transport materials for metallurgic mines, open-air coal mines and iron ore mines, water conservancy/hydropower construction sites, non-ferrous metal mines, and construction sites, etc.
蒙凱礦用車參數Specification
車輛型號 Model | MK50 |
驅動形式 Driving Model | 4×2 |
軸 距 Wheel Base(mm) | 4200 |
發動機型號 Engine | YC6MK340 YC6MK375 |
變速器 Gearbox | 10JSD160A 9JSD180A |
車 橋 Axle | Front 18T Rear 35T |
輪胎規格 Tyre Size | 14.00 |
整車整備質量 Kerb Weight(kg) | 17500 |
允許最大總質量Payload Capacity(kg) | 50000 |
車廂內部尺寸Inside Body Size(mm) | 4800×3000×1600 |
整車外形尺寸 Vehicle Shape Size(mm) | 7580×3280×3850 |
最高車速 Max.Speed(km/h) | 49 |
最大爬坡度 Grade Ability(%) | 40 |
最小轉彎半徑 Min.Turning Radius(m) | 10.5 |
車廂舉升系統 Lifting System | MK lifting system |

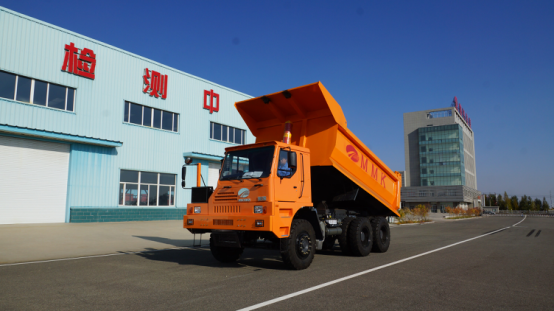

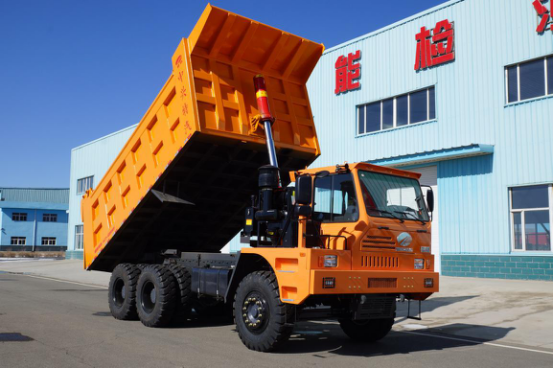

1.3蒙凱三軸礦用車MK60、MK70、MK80
采集多家大型露天煤礦、鐵礦的使用環境,精心研發的短距離土石方、礦石轉運的專用車輛。高效節油的發動機,寬速比的變速箱,高承載的平衡懸架及車橋,帶管路預熱的供油系統,三級六次過濾的進氣系統,高強度的車廂,能夠配套大型挖掘機施工作業,單車裝載更多物料,減少礦區車輛運輸密度,運輸效率大大提高!
The special purpose vehicle is derived from the service environments of several large open-cut coal mine and foreign brands. Efficient & fuel-efficient engines, high-gear-ratio transmission, high load balance suspension and axle, oil-supply system with pipe-preheating, three-stage & six-passage air filtration system. High-strength bunker can operate with a large excavator and a single one of it can load more materials, thus reducing the density of mining vehicle transportation and greatly improving transport efficiency! The overall vehicle performance is tested following relevant national standards.
蒙凱礦用車參數Specification
Model | MK60 | MK70 | MK80 |
Driving Model | 6×4 | 6×4 | 6×4 |
Wheel Base(mm) | 3625+1550 | 3625+1550 | 3625+1550 |
Engine | YC6MK340 | YC6MK375 | YC6MJ-420 |
Gearbox | 10JSD160A | 12JSD180 | 9JSD220 |
Axle | Front 16T Rear 32T | Front 16T Rear 32T | Front 16T Rear 35T |
Tyre Size | 13.00 | 14.00 | 14.00 |
Kerb Weight(kg) | 23000 | 24000 | 26000 |
Payload Capacity(kg) | 60000 | 70000 | 80000 |
Inside Body Size(mm) | 5600×3000×1500 | 5600×3000×1600 | 5800×3100×1650 |
Vehicle Shape Size(mm) | 8320×3280×3850 | 8320×3280×3850 | 8570×3325×3850 |
Max.Speed(km/h) | 49 | 49 | 49 |
Grade Ability(%) | 40 | 40 | 40 |
Min.Turning Radius(m) | 11 | 11 | 11 |
Lifting System | MK lifting system | MK lifting system | MK lifting system |

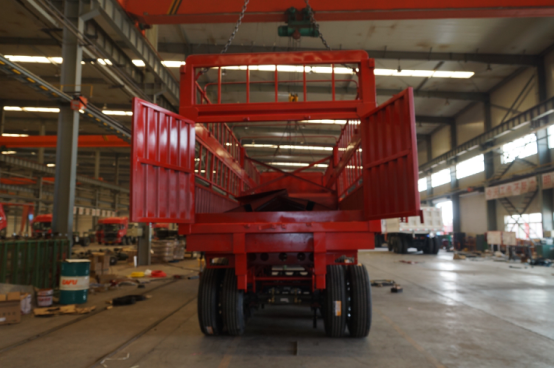

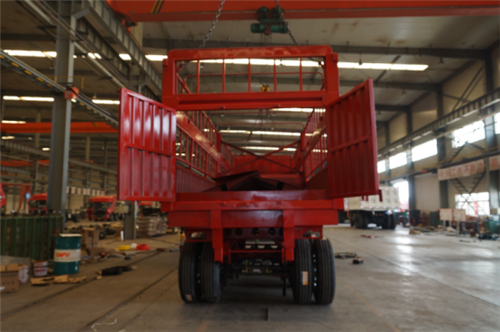

2.蒙凱半掛車
中興特汽從車輛運煤灑煤污染、限制超載、卸煤困難等方面入手,研究設計的蒙凱專利產品——活動底板倉欄半掛車,該專利卸貨效率是人工卸貨的10-30倍,是傳統自卸車效率的2倍。
Zhong Xing Special Vehicle Manufacturing Co., Ltd starts on the pollution caused by the transportation and scattering of coal, controlling the overload and the difficulties of unloading the coal, as well as R&D Mengkai Patented Products-semi-trailer with movable base floor and box/stake semi-trailer, of which the unloading efficiency of this patent is 10-30 times as high as the efficiency of manual unloading and 2 times as high as the efficiency of traditional dumper.
整車車身采用優質鋼材,先進的技術,嚴格的生產工藝制造而成,整車的結構合理,性能可靠,操作簡便。配件均采用國外知名廠家產品,且嚴格按照質量體系文件要求采購、檢驗、使用,保證了整車的良好性能。創(chuàng )新服務理念:全心全意24小時不間斷服務,我們堅信技術產生信任,只有專業,才能卓越。
The whole trailer is manufactured by premium steel, advanced technologies and strict manufacturing techniques. The trailer possesses reasonable structure, reliable performance and easy operation. All of its accessories come from products of famous manufacturers both at home and abroad and are purchased, tested and operated according to the strict quality documents to ensure the good performance of the whole trailer. We have innovative service ideas and provide 24/7 service. We sincerely believe that trust comes from technology and professionalism results in excellence.
Model | MK9401CCY MK9400CCYZ2 | MK9400CCYZ2 | MK9400CCYZ2 | MK9390CCY MK9400CCYZ1 | MK9390CCY MK9400CCYZ1 | MK9390CCY MK9400CCYZ1 |
Vehicle Shape Size(mm) | 12950X2500X3850 | 12450X2500X3850 | 11950X2500X3850 | 11500X2500X3850 | 11000X2500X3850 | 10500X2500X3850 |
Inside Body Size(mm) | 12860X2300X600 | 12200X2300X600 | 11700X2300X600 | 11350X2300X600 | 10850X2300X600 | 10350X2300X600 |
Payload Capacity(kg) | 40000 | 40000 | 40000 | 39000,40000 | 39000,40000 | 39000,40000 |
Kerb Weight(kg) | 7000,8500 | 8300 | 8100 | 7100,8100 | 6800,7900 | 6500,7700 |
Wheel Base(mm) | 6680+1310+1310 6800+1350+1350 | 6600+1310+1310 6500+1310+1310 | 6400+1310+1310 6300+1310+1310 | 5520+1310+1310 | 5320+1310+1310 5520+1310+1310 | 5220+1310+1310 5020+1310+1310 |
Plate Spring Piece Number | 10片/8片 | 10片/8片 | 10片/8片 | 10片/8片 | 10片/8片 | 10片/8片 |
Tyre Size | 12R22.5 | 12R22.5 | 12R22.5 | 12R22.5 | 12R22.5 | 12R22.5 |
